Manometers

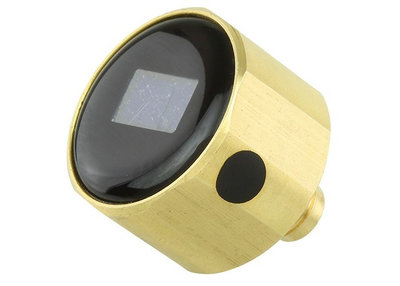

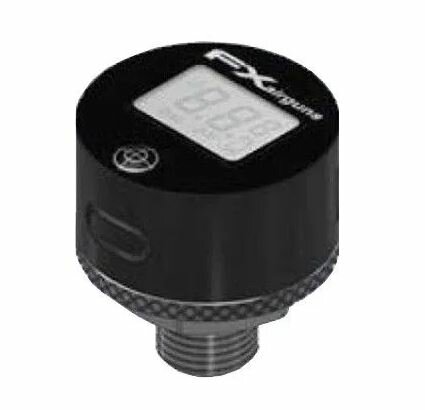

Deze FX Digitale Manometer geeft niet alleen een heldere, eenduidige weergave van de druk in uw cilinder, maar biedt daarnaast nog een heel scala aan extra informatie.

De functies van de FX Digitale Manometer omvatten:

• Schotteller
• Lifetime schotteller
• Digitale luchtdrukweergave
• Luchtverbruik

De Angled Manometer Bracket voor de FX Impact M3, M4 en FX DRS zorgt ervoor dat je de regulator constant in de gaten kunt houden. Door middel van deze bracket kun je de manometer haaks op het wapen monteren, zodat je de waarden te allen tijde af kunt lezen. Een 250 bar manometer is inbegrepen.

FX heeft alle benodige o-ringen en schroeven meegeleverd met de Angled Manometer Bracket voor de Impact M3, M4 en FX DRS. De bracket werkt in combinatie met de meegeleverd 250 bar manometer, maar ook met de standaard en digitale manometers.

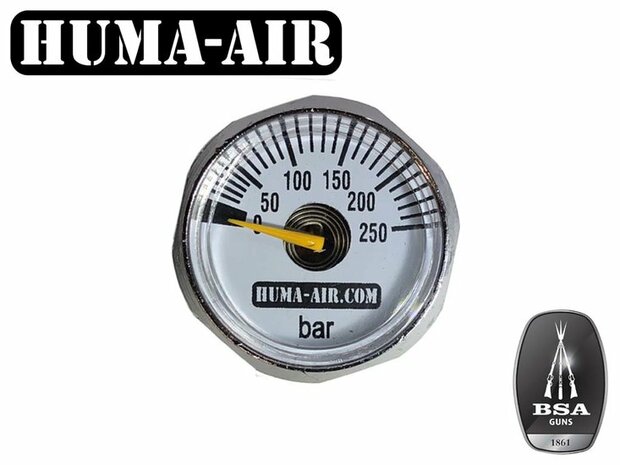

Mini pressure gauge 23 mm. for BSA Airrifles.

This 23 mm mini pressure gauge is an one on one replacement for several BSA factory pressure gauges like the BSA R10, BSA Ultra SE and BSA Scorpion SE.
Made of solid steel, chrome plated with a 250 bar wide dial scale.
The gauge comes with a oring what can replace the plastic washer what is under the factory pressure gauge. Due to this o-ring there is enough movement to line up the gauge perfectly in eye position.

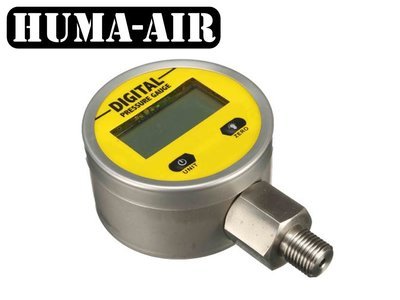

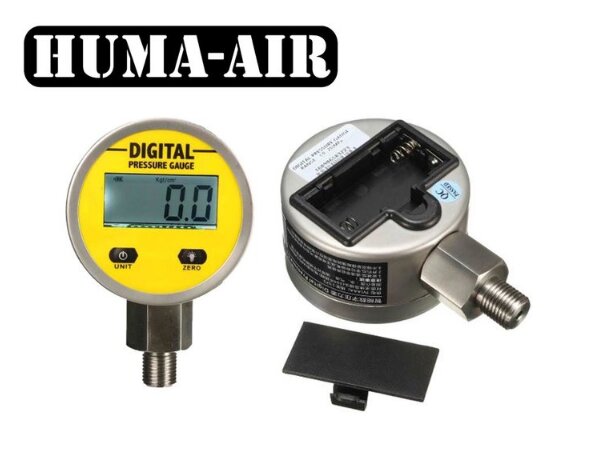

Digital pressure gauge, 1/4" BSP bottom connection and 250 bar working pressure.
Although this gauge is an "economical digital pressure gauge", we used them in our workshop for years and they are accurate and reliable. They have a high-precision sensor and they show the pressure accurately in real time. This digital pressure gauge has several functions like;  zero clearing, backlight, on/off button, units selection and low voltage alarm.
These gauges can also be used in combination with the Huma-Air regulator testers.

Technical specifications:

• Pressure Range: 0-250bar / 25Mpa / 3600PSI
• Accuracy: 0.4% FS
• Long-term Stability: 0.4% FS/year
• Overload capacity: ＜10MPa 200%; ≥10MPa 150%
• Supply: 3V two A battery, not included.
• Battery life: 12-24 months
• Samping frequency: 2T/S
• Backlight color: white
• Housing: 304SS
• Acc: 1%
• Protection Class: IP65
• Functions: backlight, on/off, units change, zero clearing
• Size:100x66x37 (mm)

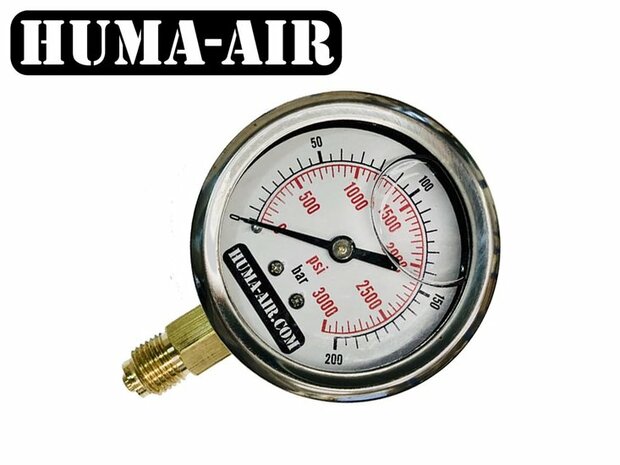

Huma-Air 65mm stainless steel pressure gauge for the professional tuners among us
Liquid filled pressure gauge for to be used for several purposes like tesing regulators, fillsets etc.
Maximum working pressure: 200 Bar / 3000 PSI.

* This is an universal pressure gauge what can be used on several airguns. Never exceed the factory advised fill pressure of your rifle!

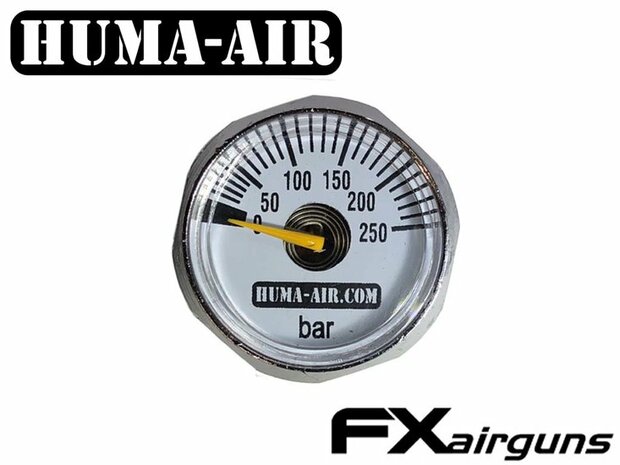

Mini pressure gauge 23mm for FX Impact
This 23 mm mini pressure gauge is an one on one replacement for the FX impact factory pressure gauges. Made of solid steel, chrome plated with a 250 bar wide dial scale. The gauge comes with a o-ring that can replace the plastic washer that is under the factory pressure gauge. Due to this o-ring there is enough movement to line up the gauge perfectly in eye position.

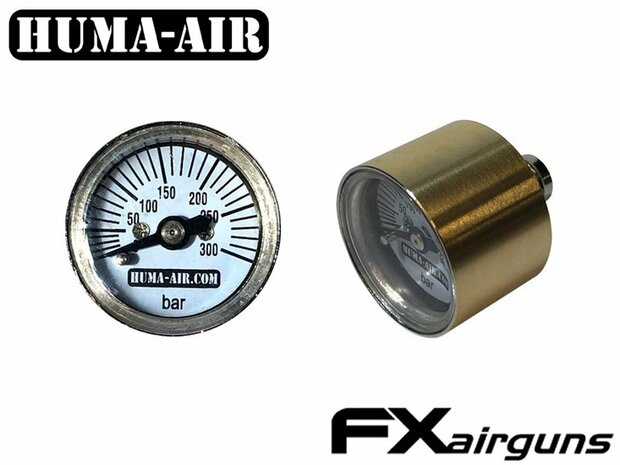

Mini pressure gauge 26 mm. Round model.
This 26 mm round pressure gauge can be used as an replacement for several FX pressure gauges. Made of solid brass body, with a wide dial scale. The gauge comes with an o-ring that can replace the plastic washer that is under the factory pressure gauge. Due to this o-ring there is enough movement to line up the gauge perfectly in eye position.

* This is an universal pressure gauge what can be used on several airguns. Never exceed the factory advised fill pressure of your rifle!

Mini pressure gauge 23mm for FX Wildcat or FX Streamline
This mini pressure gauge is to check the output pressure of your regulator.

How does it work
Unscrew the pressure tube of your rifle. Dryfire the rifle to make sure there is no pressure left in the action.
remove the brass de-presurize screw on the side of the action and replace it with our test gauge.
Then replace the pressure tube again and you can check the output pressure of the regulator after every shot.

Pressure gauge 28 mm for the FX Wildcat and FX Streamline
This 28 mm pressure gauge can be used as an replacement for the FX Wildcat and FX Streamline factory pressure gauge (Wika) mounted at the front of the pressure tube. It is made of solid brass, chrome plated with a wide dial scale.
The gauge comes with an o-ring that can replace the plastic washer that is under the factory pressure gauge. Due to this o-ring there is enough movement to line up the gauge perfectly in eye position.

* Despite the fact that the scale of the pressure gauge indicates up to 300 bar, you should never exceed the factory advised fill pressure of your rifle!

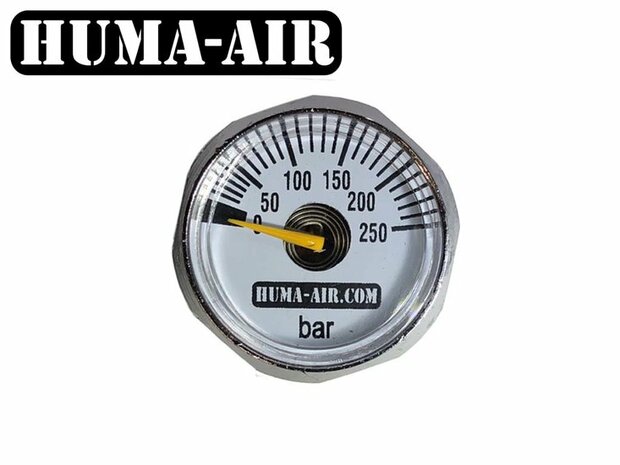

Mini pressure gauge 23 mm. with G1/8 BSP treads suitable and a 250 bar scale.
The housing is made of solid metal that is chrome plated. This 23mm pressure gauge can also be used to replace the original FX Impact manometer and BSA pressure gauges. It has a 1/8 BSP treaded bottom connection, which makes it suitable for several other brands too. An o-ring is included for proper sealing on most airguns.

This gauge is an one on one replacement for:

• FX Impact
• BSA R10
• BSA Ultra SE
• BSA Scorpion SE

* This is an universal pressure gauge what can be used on several airguns. Never exceed the factory advised fill pressure of your rifle!

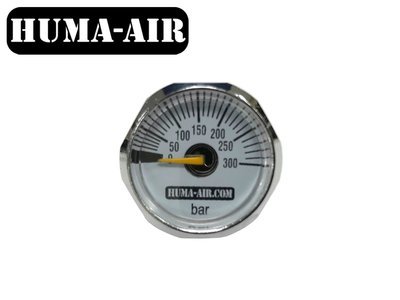

Mini pressure gauge 25 mm. with G1/8 BSP treads and a 300 bar dial scale.
The housing is made of metal that is chrome plated. This 25mm pressure gauge can also be used to replace the original FX manometer in front of your pressure tube and is also used in several other rifle brands.

* This is an universal pressure gauge what can be used on several airguns. Never exceed the factory advised fill pressure of your rifle!

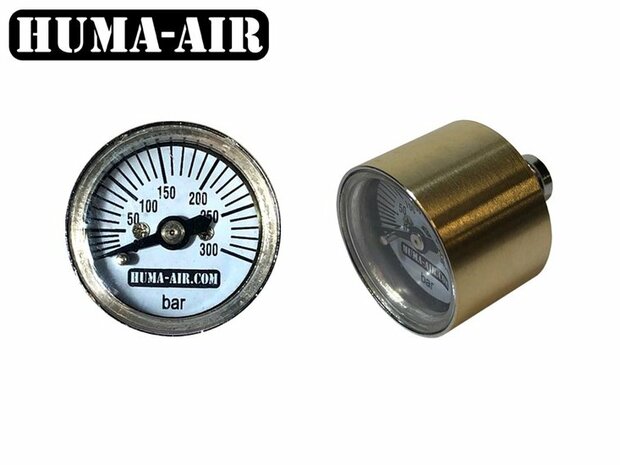

Mini pressure gauge 26 mm. Round model.
26 mm round pressure gauge with G1/8 BSP back connection. Made of solid brass body, with a wide dial scale of 300 bar, suitable for a continuous working pressure of 250 bar. The gauge comes with an o-ring for assembling the gauge into the socket, due to this o-ring there is enough movement to line up the gauge perfectly in eye position.

* This is an universal pressure gauge what can be used on several airguns. Never exceed the factory advised fill pressure of your rifle!
