Externe regulators

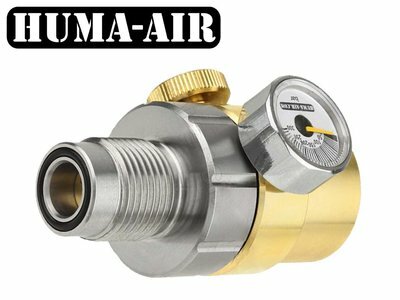

Huma-Air Externally Adjustable Inline PCP Regulator With Integrated Fillset

Externally adjustable inline PCP regulator with integrated fillset
This ultra compact external regulator is specialy designed for airgun shooting is can be screwed on to a 200/300 bar scuba tank with DIN connection. The regulator will reduce the outgoing pressure according to your settings so you can optimize the working pressure matching your airrifle. This will result in a constant pelletspeed and better groups. The regulator is equipped with a pressure gauge what will indicate the set pressure and a bleedscrew so it can fully function as a fillset.
The outgoing pressure range can be stepless set from the outside, withing the pressure ranges below, by turning the bronze ring.

• 70-125 bar
• 100-200 bar
• 180-250 bar

Within these settings the regulator can be set stepless in pressure. The standard setting is in the pressure range of 100-200 bar.
Because of the de-pressurize screw and manometer the regulator can also be used as a stand alone fillset. You will need a fill hose with 300 bar DIN connection to attach to the regulator (not included). If you already have a fillset with 300 bar din connection it can be screwed into the regulator.

* Please read the manual carefully before operating the External adjustable inline regulator. U can find the manual at the bottom of this page.
* Leest u a.u.b. eerst aandachtig de handleiding door voordat u aan het werk gaat met de regulator. Deze vind u onderaan de pagina.
