Daystate

400 / 500 cc Bottle pressure regulator

Huma-Air External Tuning Regulator For Bottled Version Rifles.


This External PCP Regulator build by Huma-Air is specialy designed for several air rifles with a pressure bottle at front of the rifle with M18x1,5 threads like the Brocock Bantam, Daystate,, Hatsan Bullmaster.

The regulator will reduce the outgoing pressure of your rifle's pressure bottle according to your settings and this will result in a constant pelletspeed and better groups.
It is equipped with a pressure gauge what will indicate the fill pressure of the bottle and a foster male connection to fill the rifle. The position of the gauge and and foster can be chosen left or right and they can be aligned stepless into their position so it always looks good on your rifle.

When the regulator is fitted to the rifle you can read the regulator output pressure on your rifles's pressure gauge and the fill pressure will be shown on the regulator gauge.
Pressure can be set by turning the set-screw of the regulator what can be found inside the male treaded part of the regulator. A 5 minutes turn contra clockwise equals to about 6-7 bar pressure increase.
This bottle regulator will be screwed in between the pressure bottle and the action of the rifle. It will ad about 58 mm of lenght. Please note, the male treaded part of you action, what will screw into the regulator can have a maximum length of 28 mm.
(your original rifle's fill connection is replaced by the regulators quick connect foster male fill connection. Do not use the original rifle bottle fill connection anymore)



The benefits of this Huma-Air tuning regulator for your rifle

• Higher accuracy due to the elimination of the pelletspeed fluctuations
• The solid stainless steel foster fill connection and pressure gauge can switched over from left to right
• The position of the foster and pressure gauge can be turned around for 360 degrees. So you aligned it to your own wishes.
• Under the pressure gauge there is a o-ring what make it posible to line the dialplate up straight for the eye.
• It will give you a constant pellet speed over the full working pressure range.
• It will give you a better shotcount and a full flat shotstring immediately.
• Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
• Often the rifle will make less noise due to better balance in air usage.



Pressure settings of the Huma-Air bottle regulator


Your bottle regulator comes preset on the pressure we have tesed it and it is marked on the packing. You can set the regulator according to your wishes within the pressure range. The output pressure will be shown on the factory pressure gauge of your airrifle.

Our advice for choosing the best pressure range for your Huma-Air regulator:

• Medium pressure range:  70-150 bar for all sub 12 ftlbs rifles from 1.77, .22 and .25
• High pressure range:       100-170 bar for FAC models in real high power .25



Important safety notes:

These regulators are not suitable for stand alone pressure bottles/buddy bottles.
The maximum working pressure of this model is 250 Bar.
Do not exceed the factory adviced fill pressure of your rifle.
Do not exchange the original factory bottle for a higher pressure bottle version.
These regulators are not suitable for a CO2 to HPA conversion, because they do not have a safety burst disk.
This regulator cannot be used as a replacement regulator for factory regulators equipped with a safety burst disk (like paintball regs or RTI priest regulator) as the Huma-Air model does not have a burst disk. When the regulator would malfunction, the full fill pressure of the bottle will be inside the action of the rifle what could be potential very dangerous)



Power setting of your rifle:



Please note, your rifles output power depends of the available air volume behind the regulator. You need about 12 cc for .22 and 16 cc in .25 for high power rifles. If you are not sure, measure the air channels in the action and we can help you calculate it. We will ad rifles to the list below when we have received information.

• Hatsan Nova, Airmax, Barriage, Hercules Bully are not suitable for this regulator



Huma-Air Quality Control


Huma-Air regulators are CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

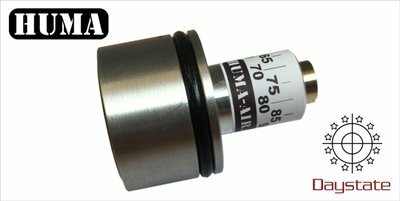

Huma-Air Daystate Huntsman .177 12 ft/lbs Tuning Regulator

Daystate Huntsman .177 12 ft/lbs Tuning Regulator
For the Daystate Huntsman airrifle we have a pressure regulator available that can be pushed into the pressure tube. It's is specialy designed for the sub 12 ft/lbs - 16 Joule version in .177
This regulator is vented to the atmosphere without any modification to your pressure tube. So no drilling in the tube and also no creeping up in power during time.

The benefits

• Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations
• A constant pellet speed over the full working pressure range.
• It will give you a better shotcount and a full flat shotstring immediately.
• Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
• Often the rifle will make less noise due to better balance in air usage.

Pressure settings
The regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes.
It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.

Quality
The regulator is CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use belleville springs designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

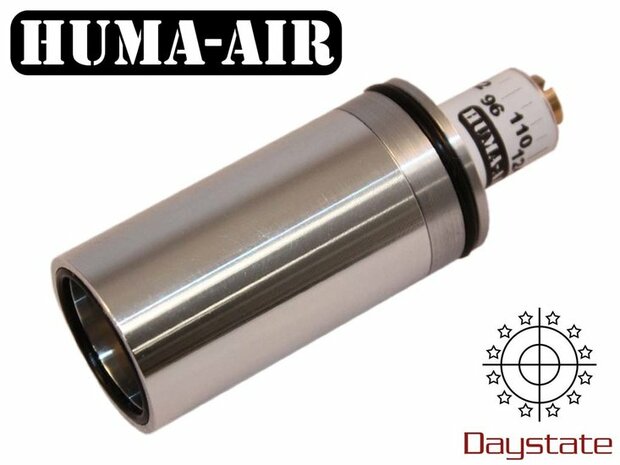

Huma-Air Daystate Huntsman FAC Tuning Regulator

Huma-Air Daystate Huntsman FAC Tuning Regulator
For the Daystate Huntsman airrifle in FAC version we have a Huma regulator available that can be placed into the rifle without modifications to your pressure tube. The Daystate Huntsman regulator made by Huma is vented to the atmosphere, so no drilling in the tube and also no creeping up in power during time.

The benefits

• Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations
• A constant pellet speed over the full working pressure range.
• It will give you a better shotcount and a full flat shotstring immediately.
• Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
• Often the rifle will make less noise due to better balance in air usage.

Pressure settings
Designed for a wide pressure range (70-150 bar) to suit all calibers.
The regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes.
It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.

* This model is not suitable for the older Huntsman models with the pressure tube and hammer housing out of one part

Quality
The regulator is CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use belleville springs designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

* Gelieve hieronder aan te geven voor welk kalilber u de regulator wilt bestellen en welke setting u wilt. Als u een custom setting wilt geef dit dan aan in het opmerkingen veld. U komt dit veld vanzelf tegen als u verder gaat met bestellen. Als u de standaard setting wilt, vul dan niets in.

Huma-Air Daystate Renegade Tuning Regulator

 Huma-Air Daystate Renegade Tuning Regulator
For the Daystate Renegade we can make a very easy to fit pressure regulator that will give you great results imediately!
This regulator is vented to the atmosphere without any modification to your pressure tube. So no drilling in the tube and also no creeping up in power.

The benefits

• Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations
• A constant pellet speed over the full working pressure range.
• It will give you a better shotcount and a full flat shotstring immediately.
• Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
• Often the rifle will make less noise due to better balance in air usage.

Pressure settings
The regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes. It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.

Quality
The regulator is CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use belleville springs designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

* Gelieve hieronder aan te geven voor welk kalilber u de regulator wilt bestellen en welke setting u wilt. Als u een custom setting wilt geef dit dan aan in het opmerkingen veld. U komt dit veld vanzelf tegen als u verder gaat met bestellen. Als u de standaard setting wilt, vul dan niets in.

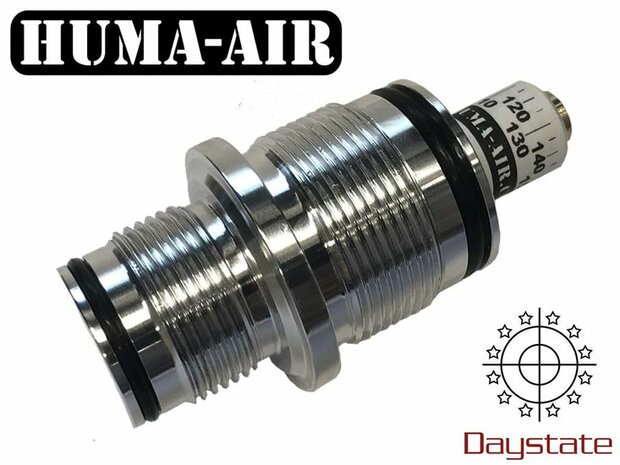

Huma-Air Daystate Tsar Tuning Regulator



Huma-Air Daystate Tsar Tuning Regulator
For the Daystate Tsar we have a tuning regulator available that will improve your airrifle's performance. This regulator is vented to the atmosphere and is an one on one replacement for your factory regulator. Due to our ultra compact build the regulator will give you more regulated volume available so you can get the same pellet velocity with less pressure.

The benefits

• Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations.
• A constant pellet speed over the full working pressure range.
• Maximum use of the air volume due to our ultra compact build.
• It will give you a full flat shotstring immediately.
• Replacing the factory regulator for the Huma Daystate Tsar regulator will give you the most reliable performance.

Pressure settings of the Daystate Tsar Regulator
The regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes. It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.
Our advice for choosing the best pressure range for your Huma regulator:

• Low pressure range:        60-110 bar for 16 Joule / 12 ft/lbs models.
• High pressure range:       100-170 bar for all FAC models

Quality Control
Huma regulator's are CNC produced out of high grade aircraft Aluminum and bronze. To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure. We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

* Gelieve hieronder aan te geven welke power setting u wilt. Als u een custom power setting wilt, geef dit dan aan in het opmerkingen veld. U komt dit veld vanzelf tegen als u verder gaat met bestellen. Als u de standaard setting wilt, vul dan niets in.

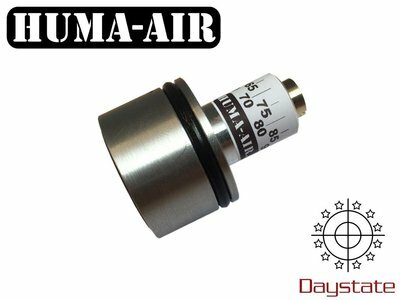

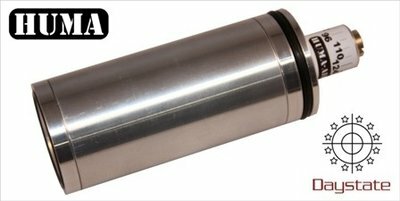

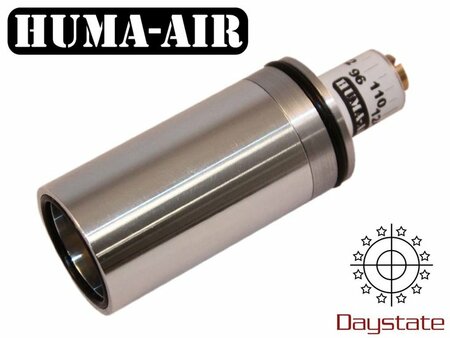

Huma-Air Daystate Wolverine Tuning Regulator

Huma-Air Daystate Wolverine Tuning Regulator
For the Daystate Wolverine we have made a pressure regulator that can be pushed into the pressure tube.
This regulator is vented to the atmosphere without any modification to your pressure tube. So no drilling in the tube and also no creeping up in power. They are made for the .22, .25 and of course they are also available for the larger caliber .303 (70 ft/lbs-100 Joule).

* This model regulator is only suitable for rifle's with pressure tube, not suitable for bottled rifles (so no "B" or "C" types)

The benefits

• Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations
• A constant pellet speed over the full working pressure range.
• It will give you a better shotcount and a full flat shotstring immediately.
• Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
• Often the rifle will make less noise due to better balance in air usage.


Pressure settings
The regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes.
It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.

Quality
The regulator is CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use belleville springs designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

* Gelieve hieronder aan te geven voor welk kalilber u de regulator wilt bestellen en welke setting u wilt. Als u een custom setting wilt geef dit dan aan in het opmerkingen veld. U komt dit veld vanzelf tegen als u verder gaat met bestellen. Als u de standaard setting wilt, vul dan niets in.
